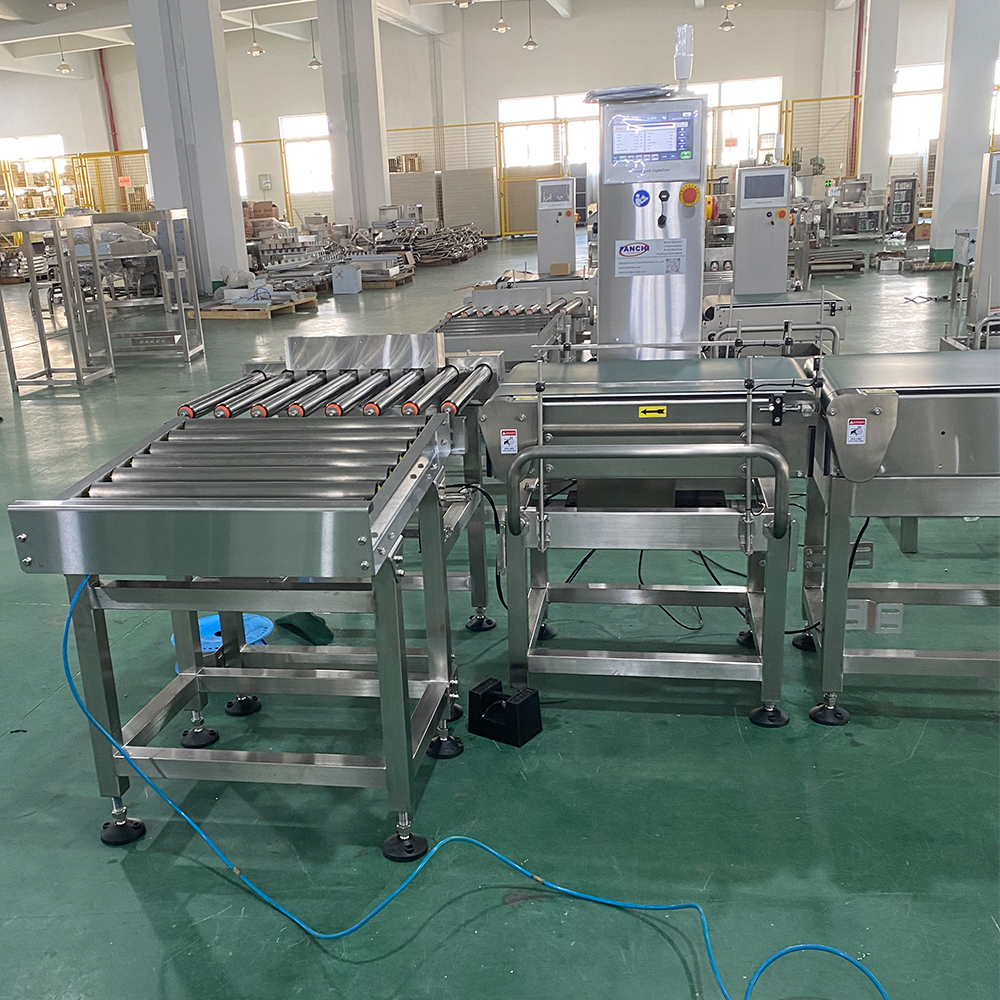

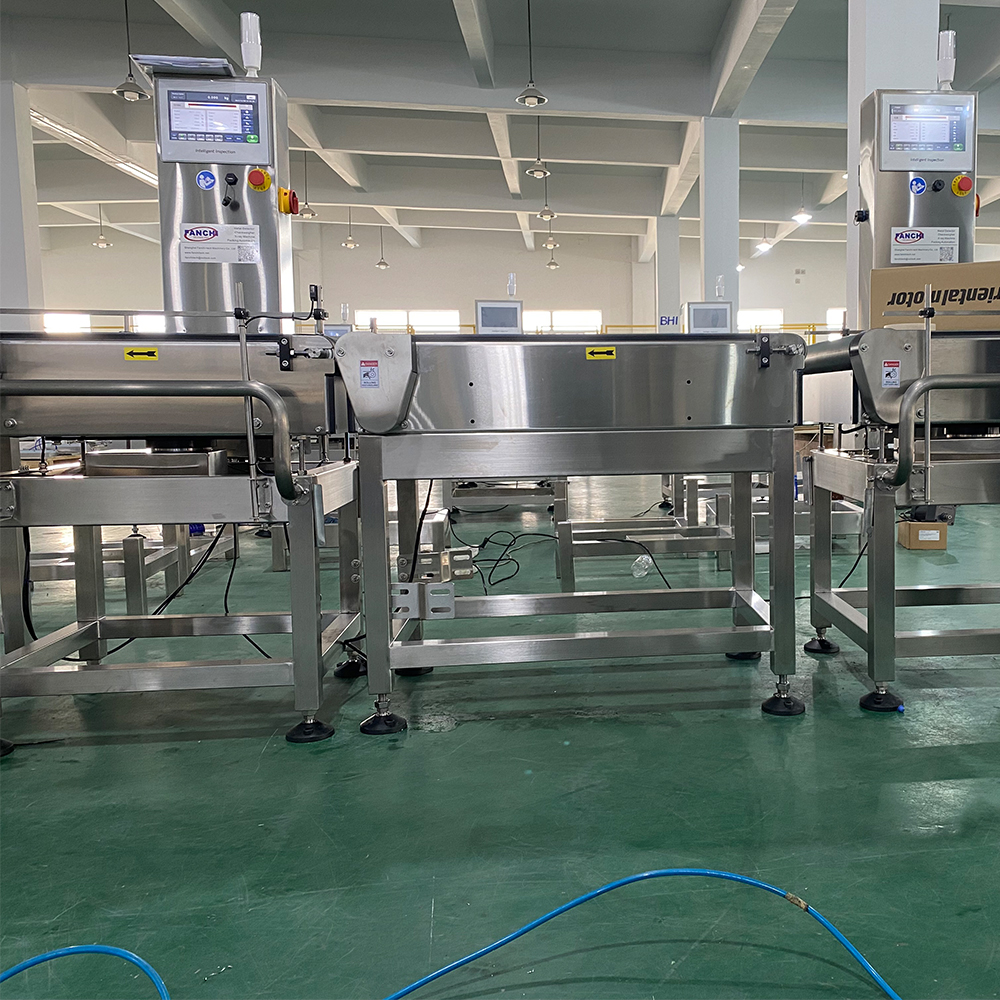

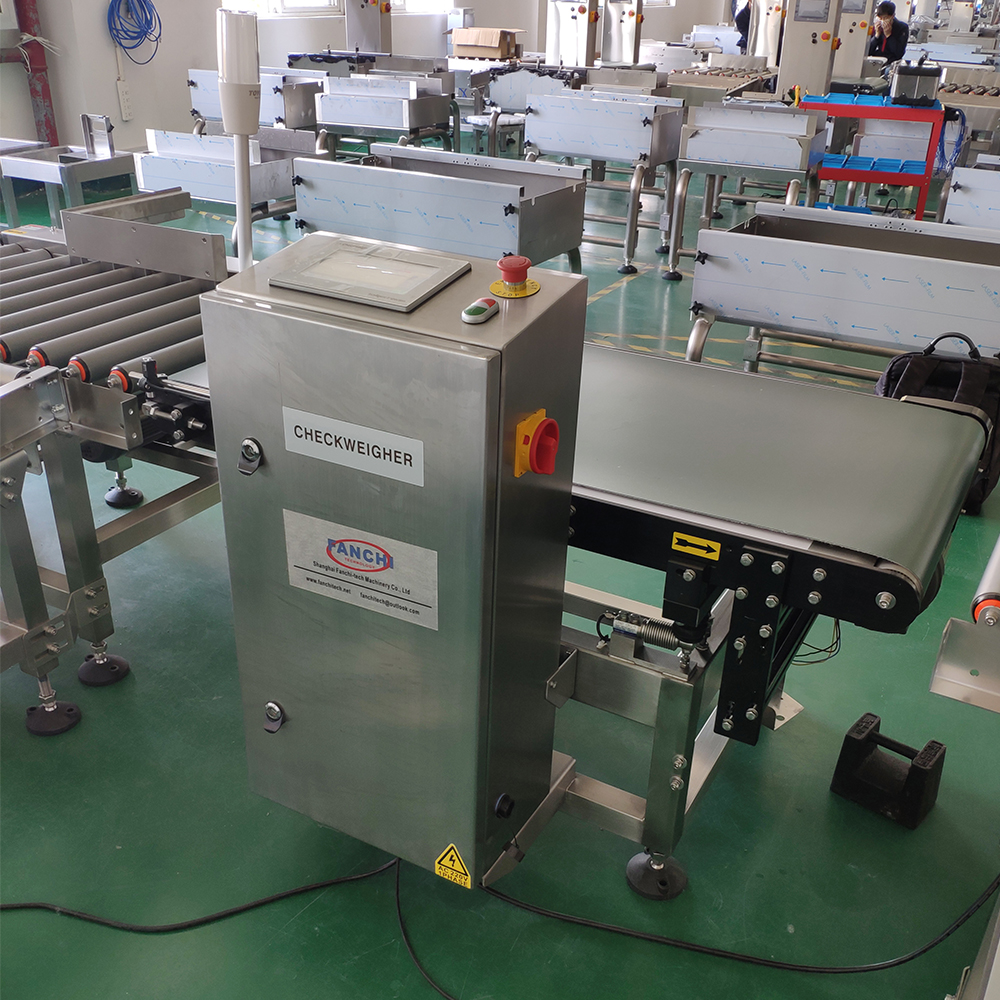

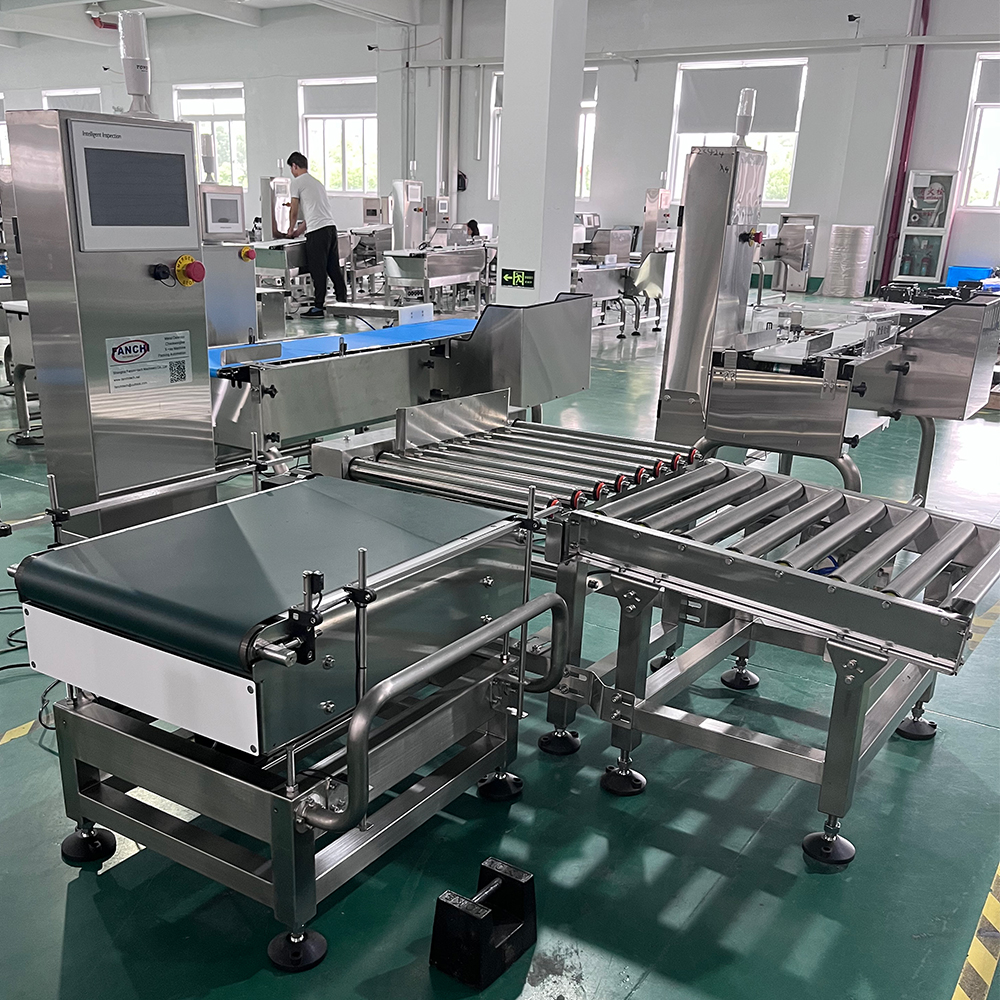

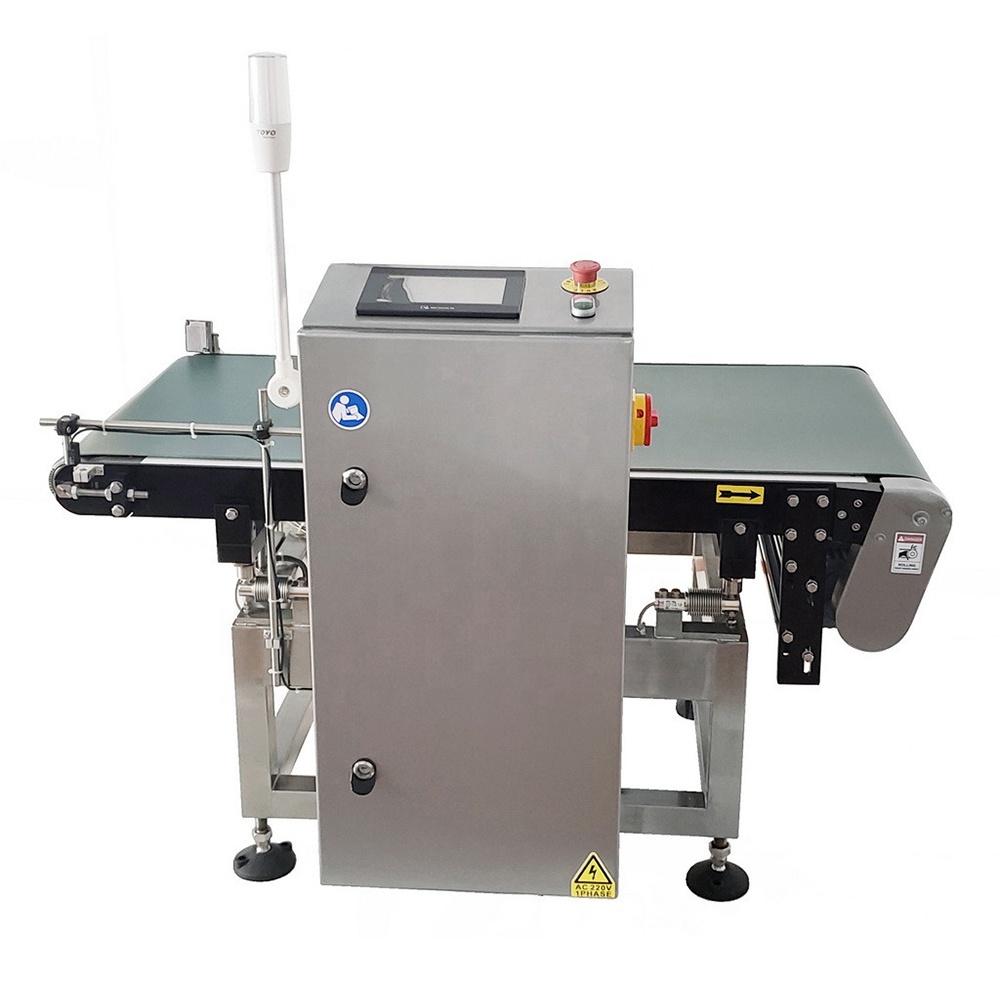

Factory Price Checkweigher Machine For Weight Control Online Conveyor Scale Manufacturer

Product Description

Product Overview
Dynamic Checkweighing is a method of safe guarding within the food and packaging industries for product weights. A Checkweigher system will check weights of products whilst in motion, rejecting any products that are over or under the set weight.
Our range of Dynamic Checkweighers are easy to use with intuitive full colour touchscreens as well as offering fast inspection and product set up, automatically optimising the systems for each product type allowing you to learn and switch within minutes. Our machines are made for products ranging from small and light sachets right through to Heavy weight boxes; They've been widely applied in various industries like: meat&poultry processing, sea food, bakery, nuts, vegetables, pharmacy, cosmetics, etc. With a checkweigher customized to your specifications, you can depend on accurate weight control, maximized efficiency, and consistent product throughput, even in rugged industrial environments. We will keep your line moving toward maximum productivity at all times.
Features At A Glance
  • Accurate and efficient rejection system.
  • Switch Products in Seconds with a Library of Stored Products up to 100.
  • Multilevel password protection for secure access and traceability.
  • Extensive data logging and reporting via USB or ethernet for HACCP and retail compliance.
Feature Image 1

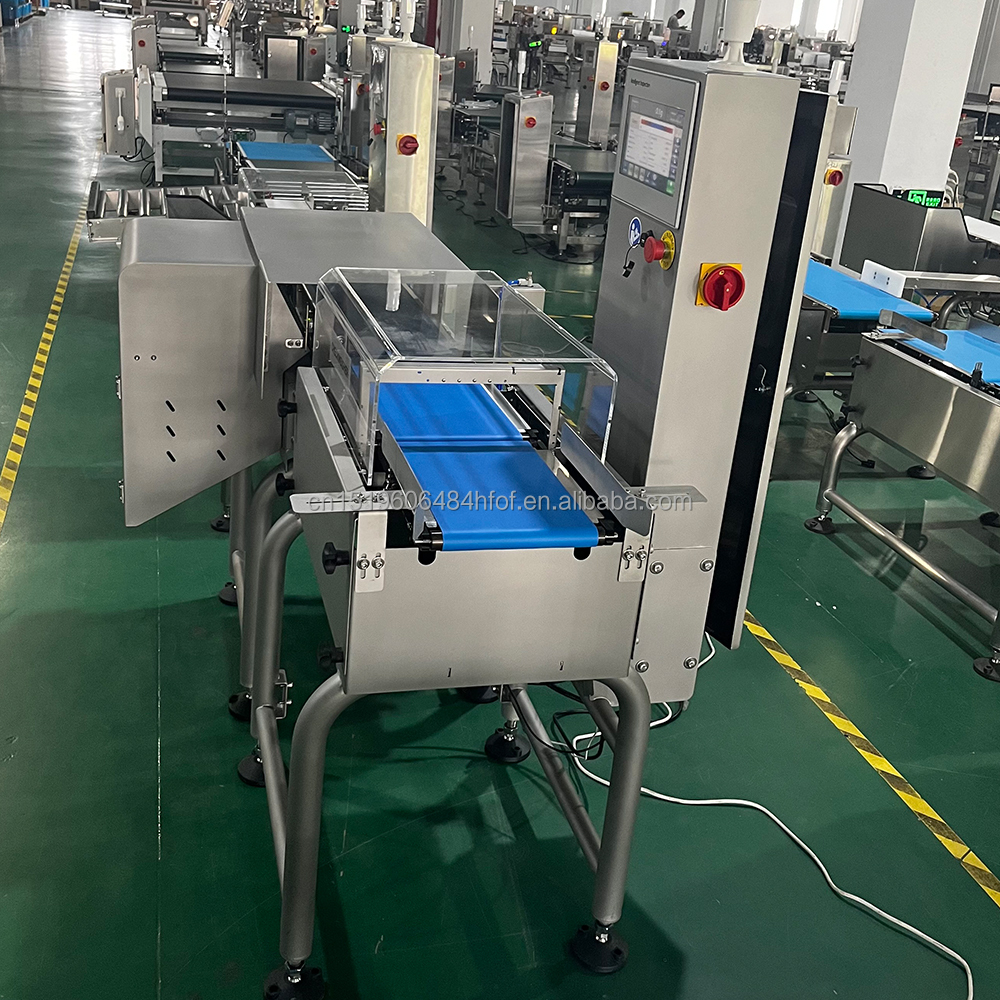

Feature Image 2
  • Automatic mean weight correction to help meet weight legislation.
  • Ultra-fast dynamic weight tracking and automatic compensation technology effectively Improve the detection of stability.
  • Brushless motors & proven conveyor components designed for reliable 24/7 operation.
  • For dynamic weighing of large end-of-line packaged goods including convenience foods, sachets and ready meals.
Product Elevations

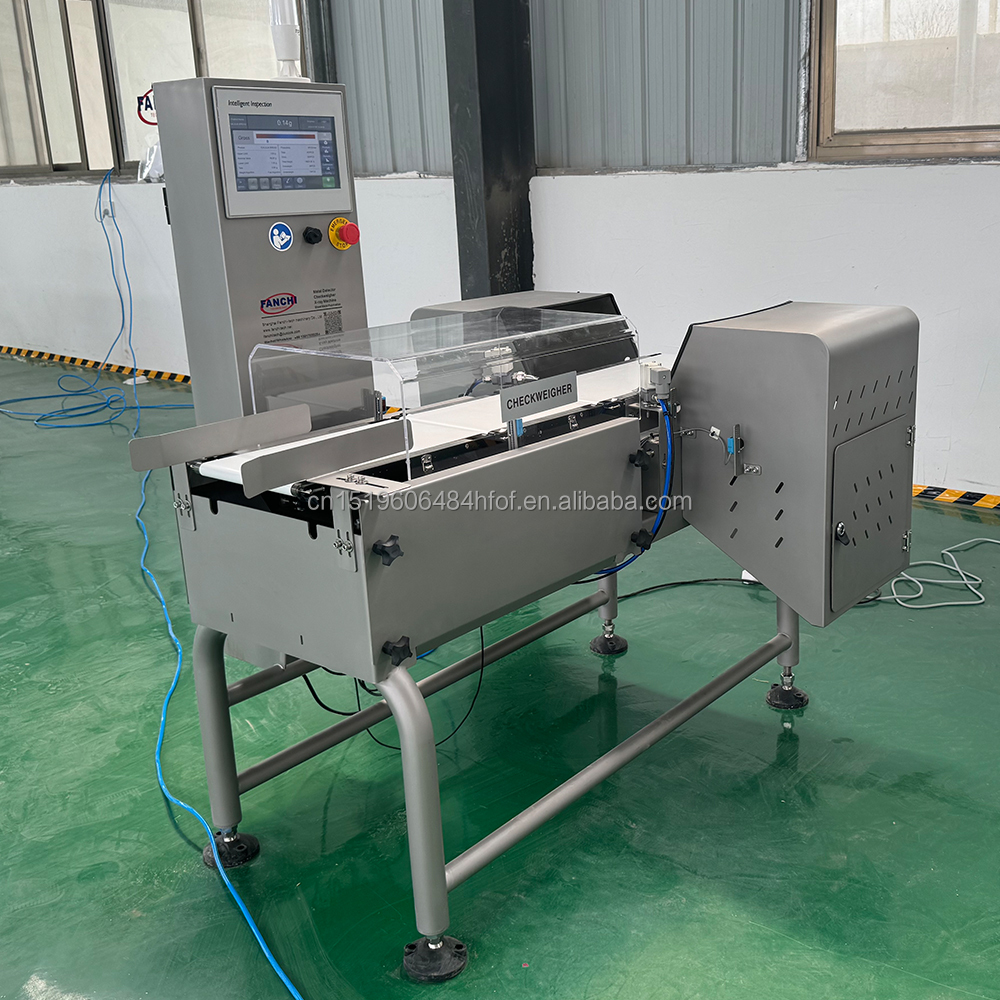

Right elevation
Right elevation

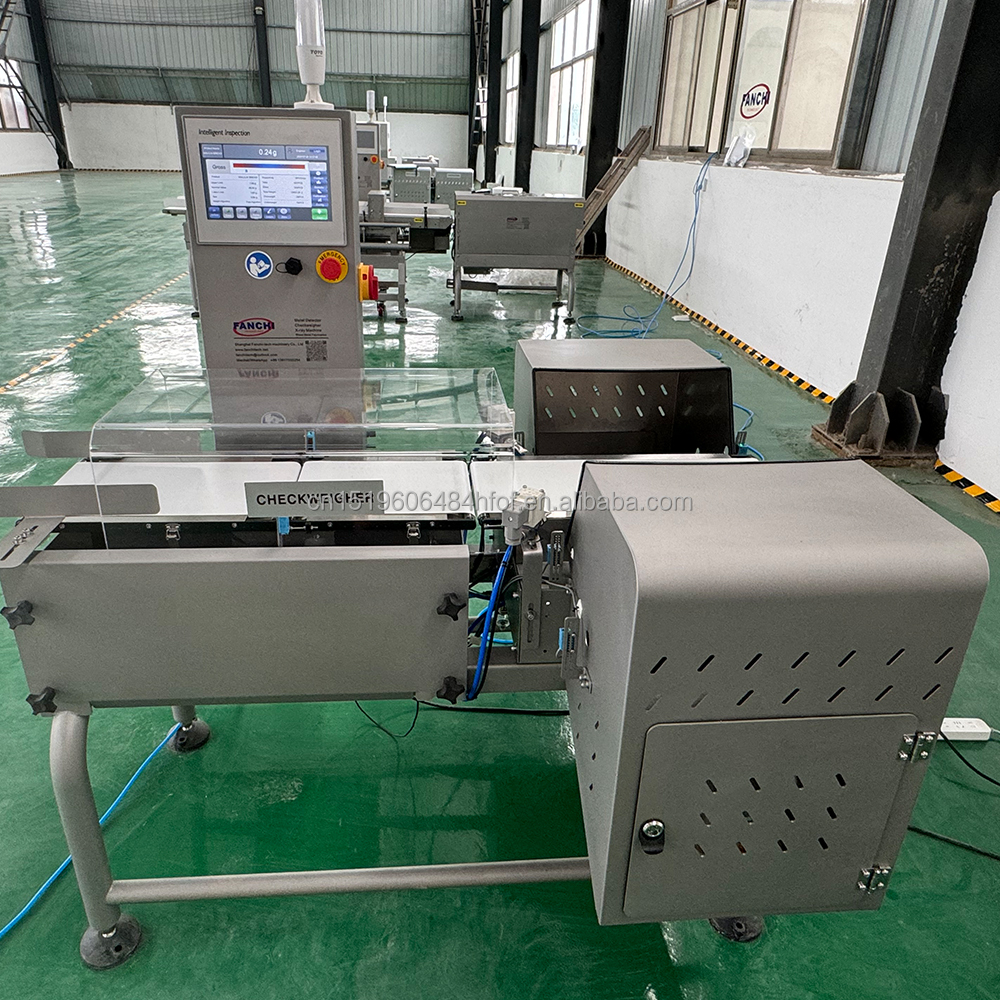

Front elevation
Front elevation

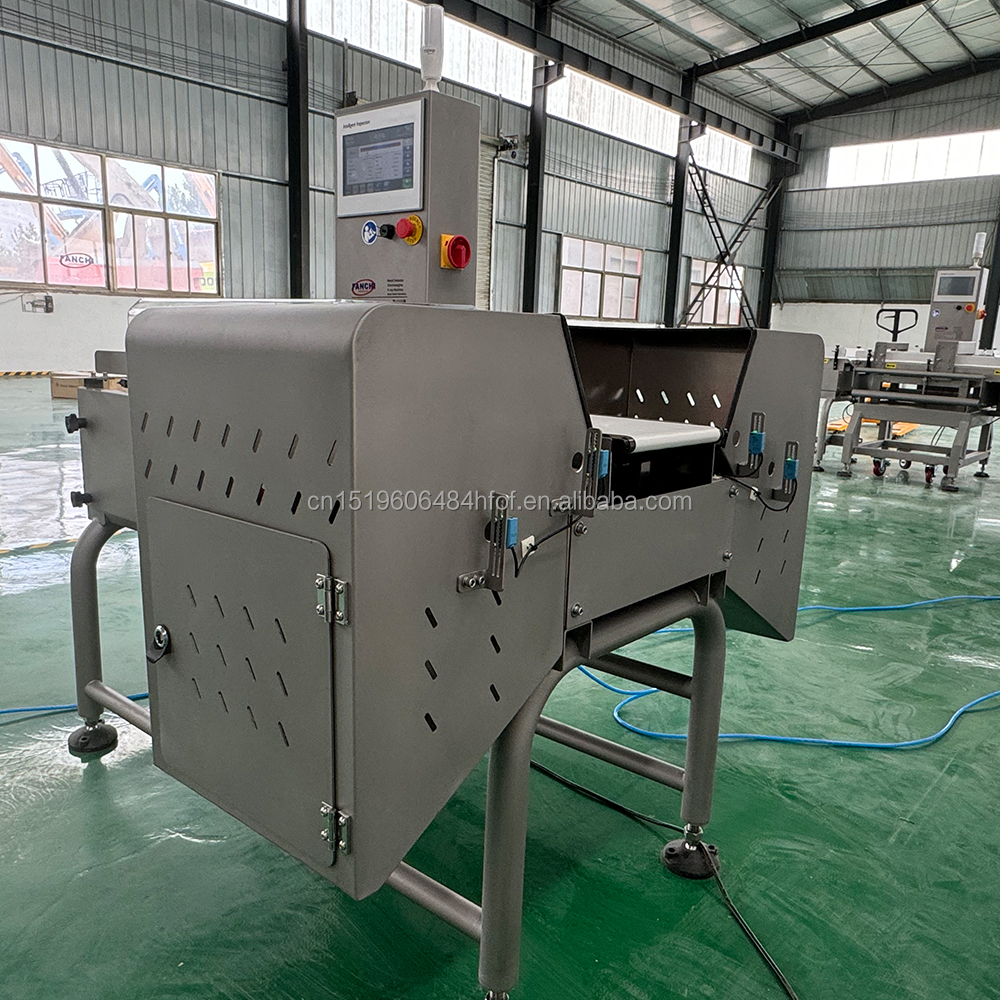

Left elevation
Left elevation
Detail Gallery

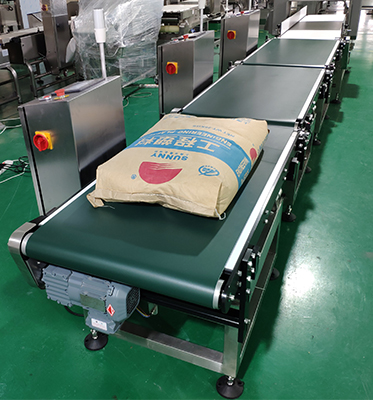

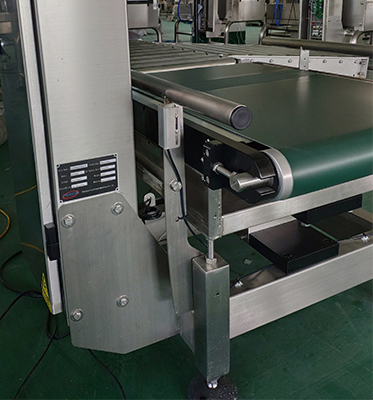

Detail Image 1 Detail Image 2

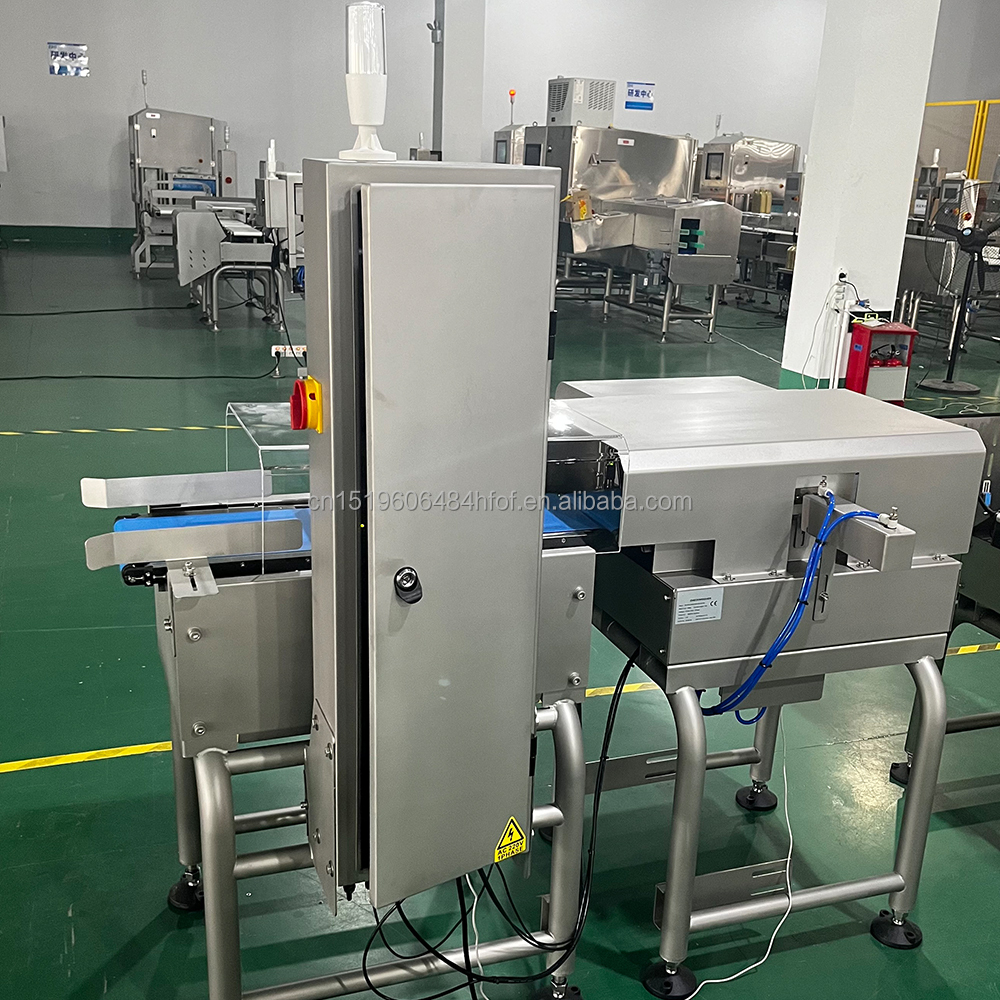

Detail Image 3 Detail Image 4

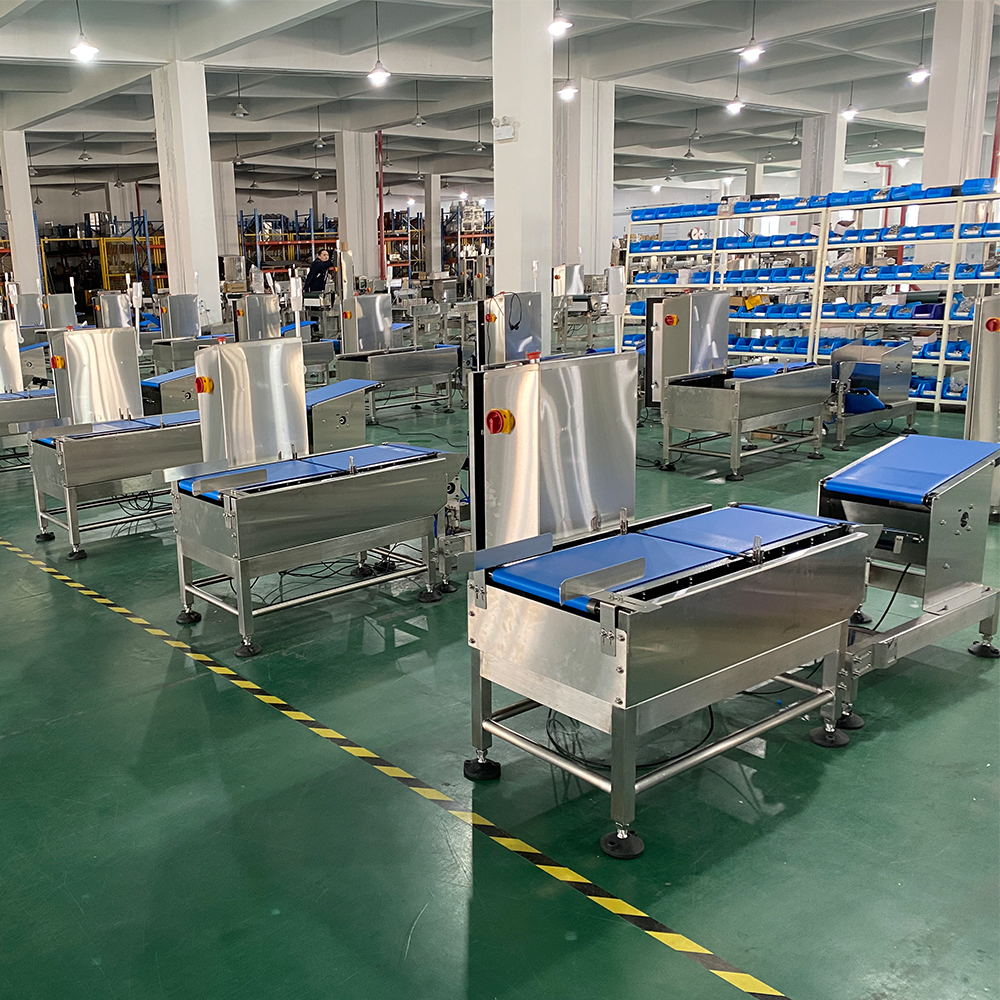

Overview Display
Combination Systems
Compact and Reliable Inspection

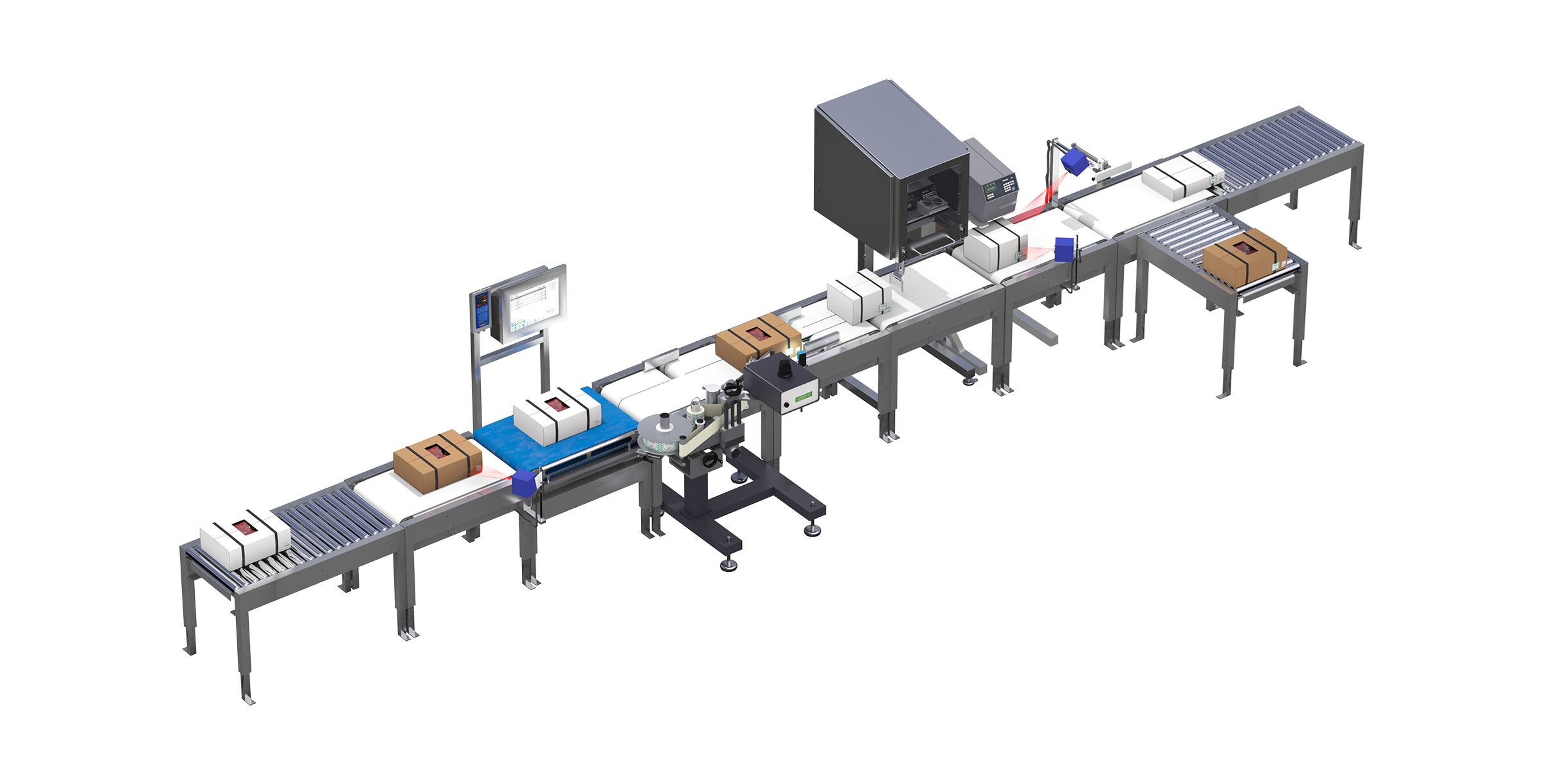

Dynamic Checkweigher systems are available in combination with metal detectors or x-ray machine, or labeling machine, which can save footprints greatly. Our checkweighers rapidly weigh products in motion on a conveyor line and automatically reject off-weight products, as specified in the product setup.
Combination System
Product Specifications
Model FA-CW160 FA-CW230 FA-CW300 FA-CW360 FA-CW450
Detecting Range 3~200g 5~1000g 10~4000g 10g~10kg 10g-10kg
Scale Interval 0.01g 0.1g 0.1g 1g 1g
Detecting Accuracy ±0.1g ±0.2g ±0.3g ±1g ±1g
Detecting Speed 250pcs/min 200pcs/min 150pcs/min 120pcs/min 80pcs/min
Weigher Size (W*L mm) 160x200 /250/300 230x250 /350/450 300x350 /450/550 360x450 /550/800 450x550 /700/800
Material of Construction Stainless Steel 304
Belt Type PU Anti Static
Line Height Options 700,750,800,850,900,950mm +/- 50mm (can be customized)
Operation Screen 7-inch LCD Touch Screen
Memory 100 kinds
Weigh Sensor HBM high accuracy load cell
Data Retrieval USB Port(Standard); Ethernet/RS232(Optional)
Conformity CE (Declaration of Conformity and Declaration of Manufacturer); UL
Software Language English (Spanish/French/Russian, etc optional)
Rejector Flipper/Pusher/Flapper/Air Blasting/Drop-down, etc (Optional)
Inline Heavy Duty Dynamic Checkweigher Specifications

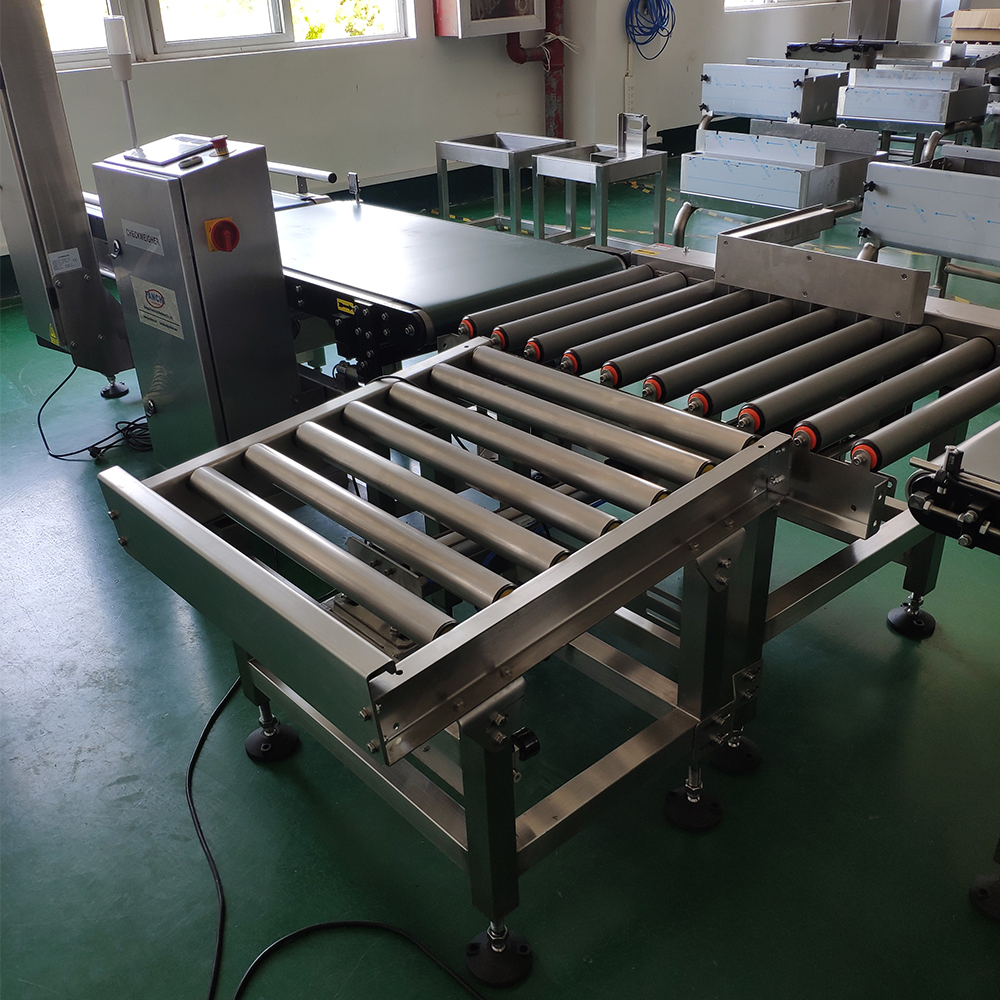

Heavy Duty Model 1 Heavy Duty Model 2
Model FA-CW500 FA-CW600 FA-CW700
Detecting Range 0.1~25kg 0.1~50kg 0.1~60kg
Scale Interval 1g 1g 1g
Detecting Accuracy ±5g ±10g ±15g
Detecting Speed 40pcs/min 35pcs/min 35pcs/min
Weigher Size (W*L mm) 500x600/800 600x1200 700x1200
Material of Construction Stainless Steel 304
Belt Type PU Anti Static
Line Height Options 600,650,700,750,800,850,900mm +/- 50mm (can be customized)
Operation Screen 7-inch LCD Touch Screen
Memory 100 kinds
Weigh Sensor HBM high accuracy load cell
Rejector Heavy Pusher Rejector
Air Supply 5 to 8 Bar (10mm Outside Dia) 72-116 PSI
Operating Temperatures 0-40℃
Self-diagnosis Zero error, photosensor error, setting error, products too close error.
Other Standard Accessories Windshield cover (colorless and clear), photo sensor
Power Supply AC110/220V, 1phase, 50/60Hz, 750W
Data Retrieval Via USB (standard), Ethernet is optional
Key Components
German HBM high speed load cell
Japanese Oriental motor
Danish Danfoss frequency converter
Japanese Omron Optic sensors
French Schneider Electric Unit
US Gates synchronous belt
Japanese SMC pneumatic unit
Weinview industrial touch screen
Successful Projects

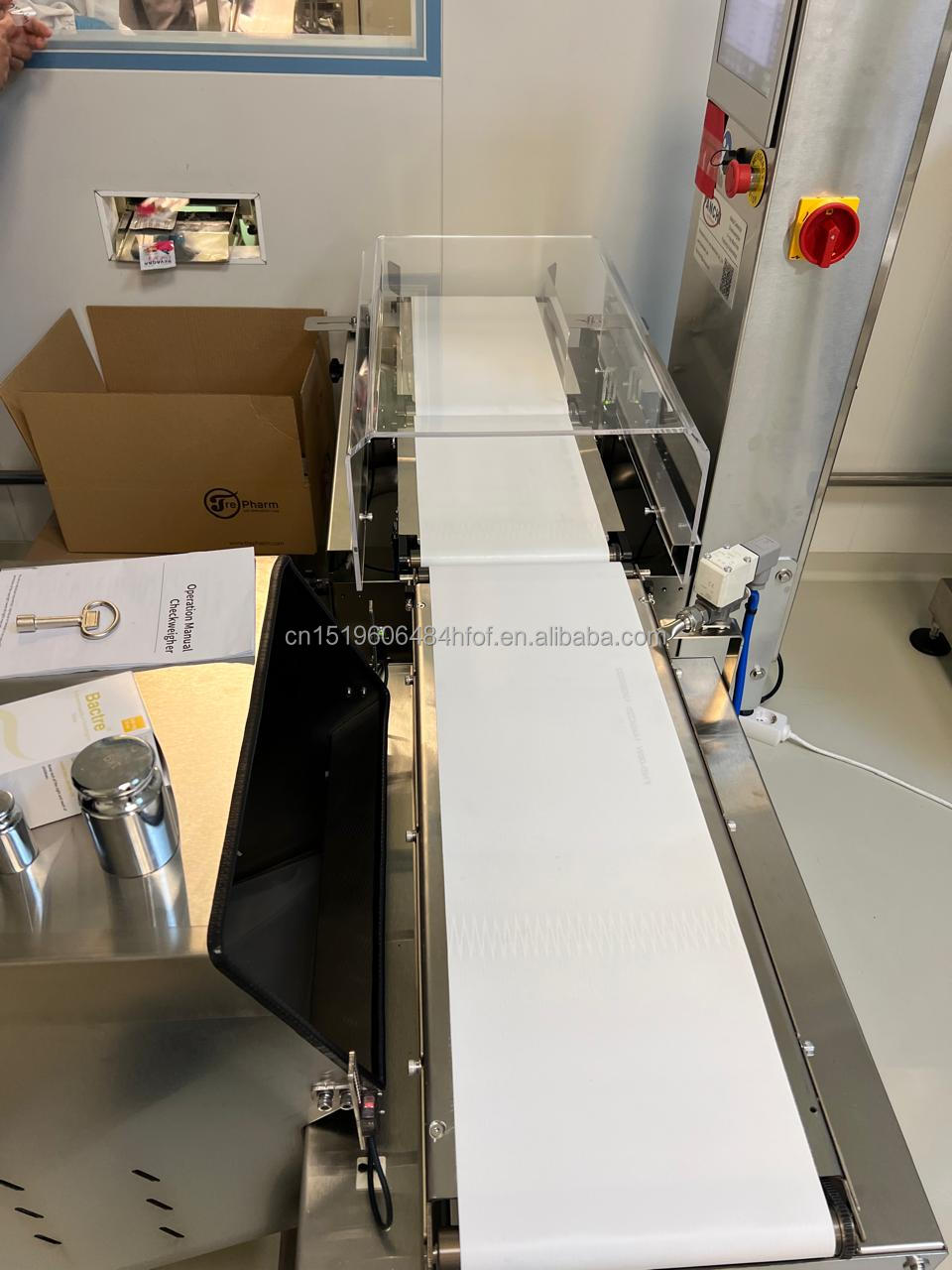

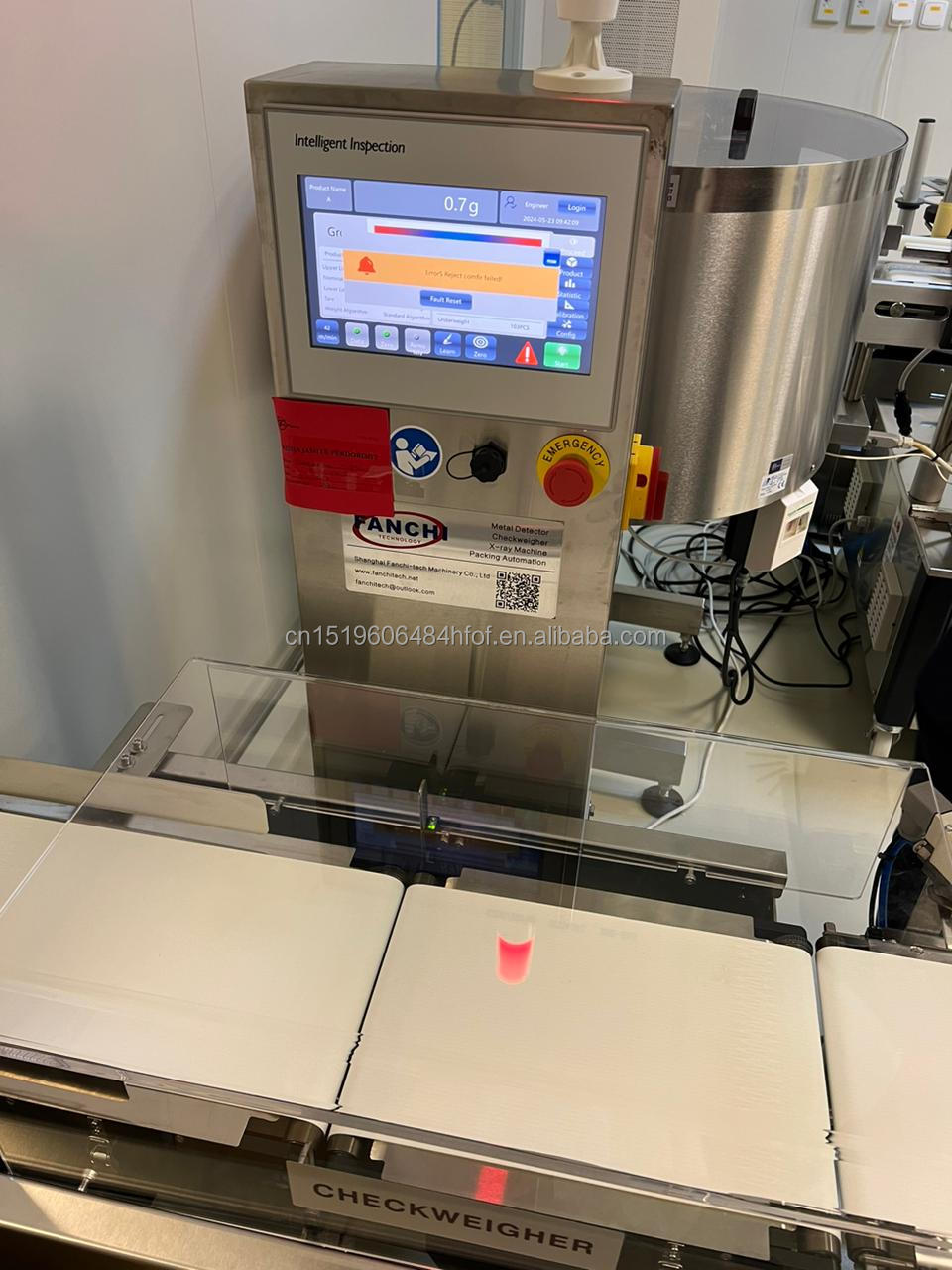

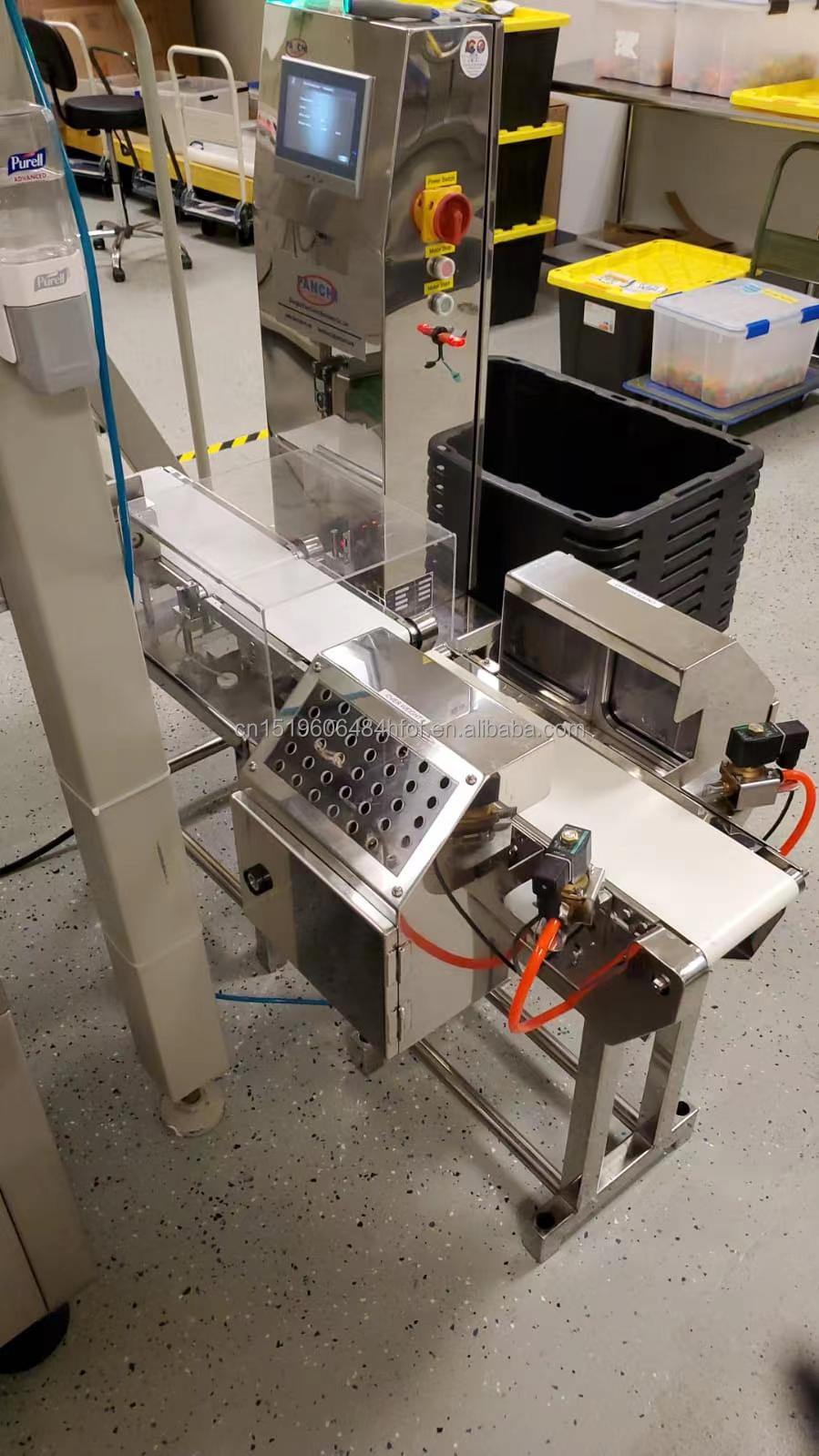

Project 1 Project 2 Project 3

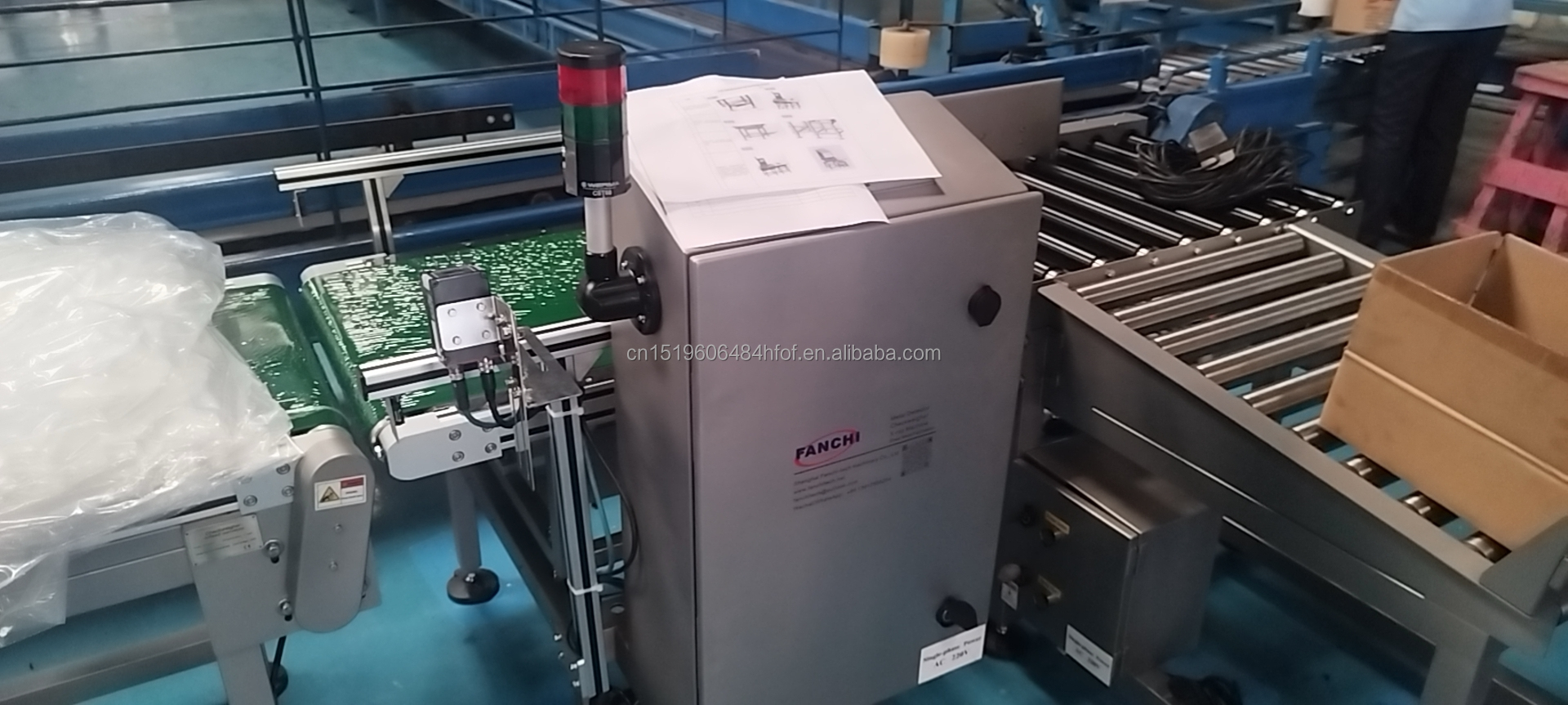

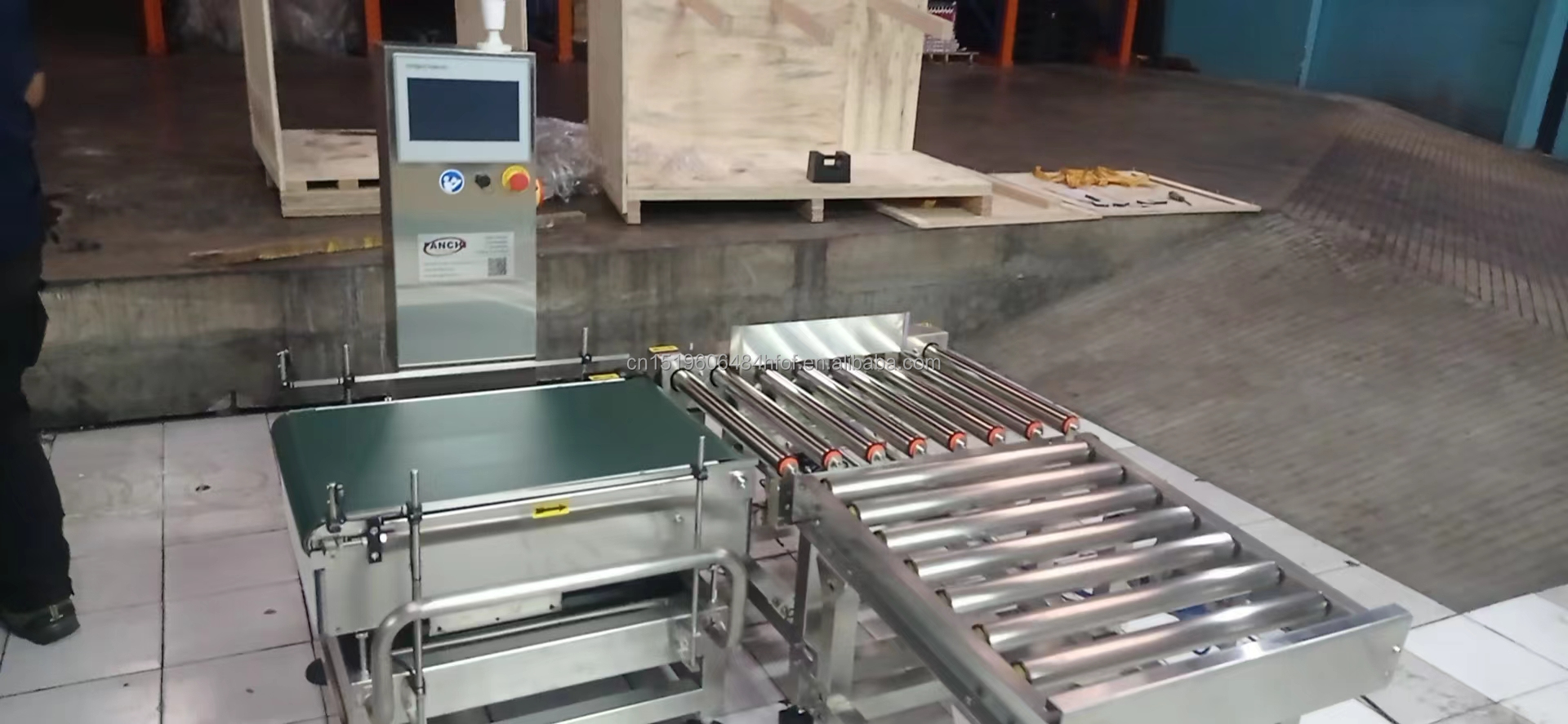

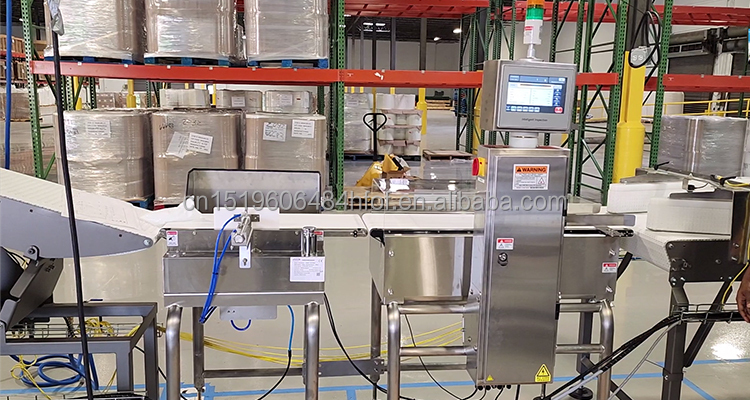

Project 4 Project 5 Project 6

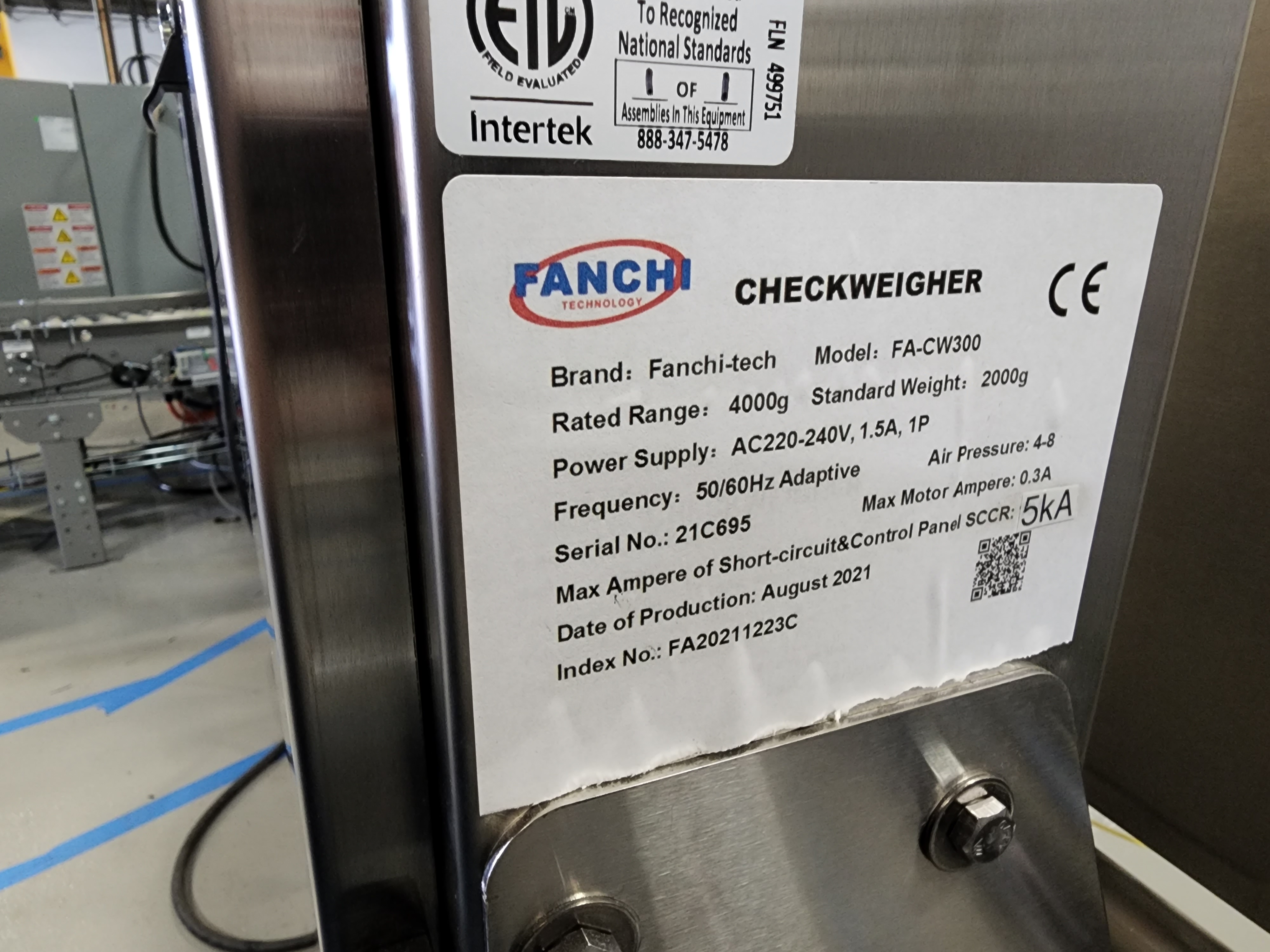

Project 7
Certifications

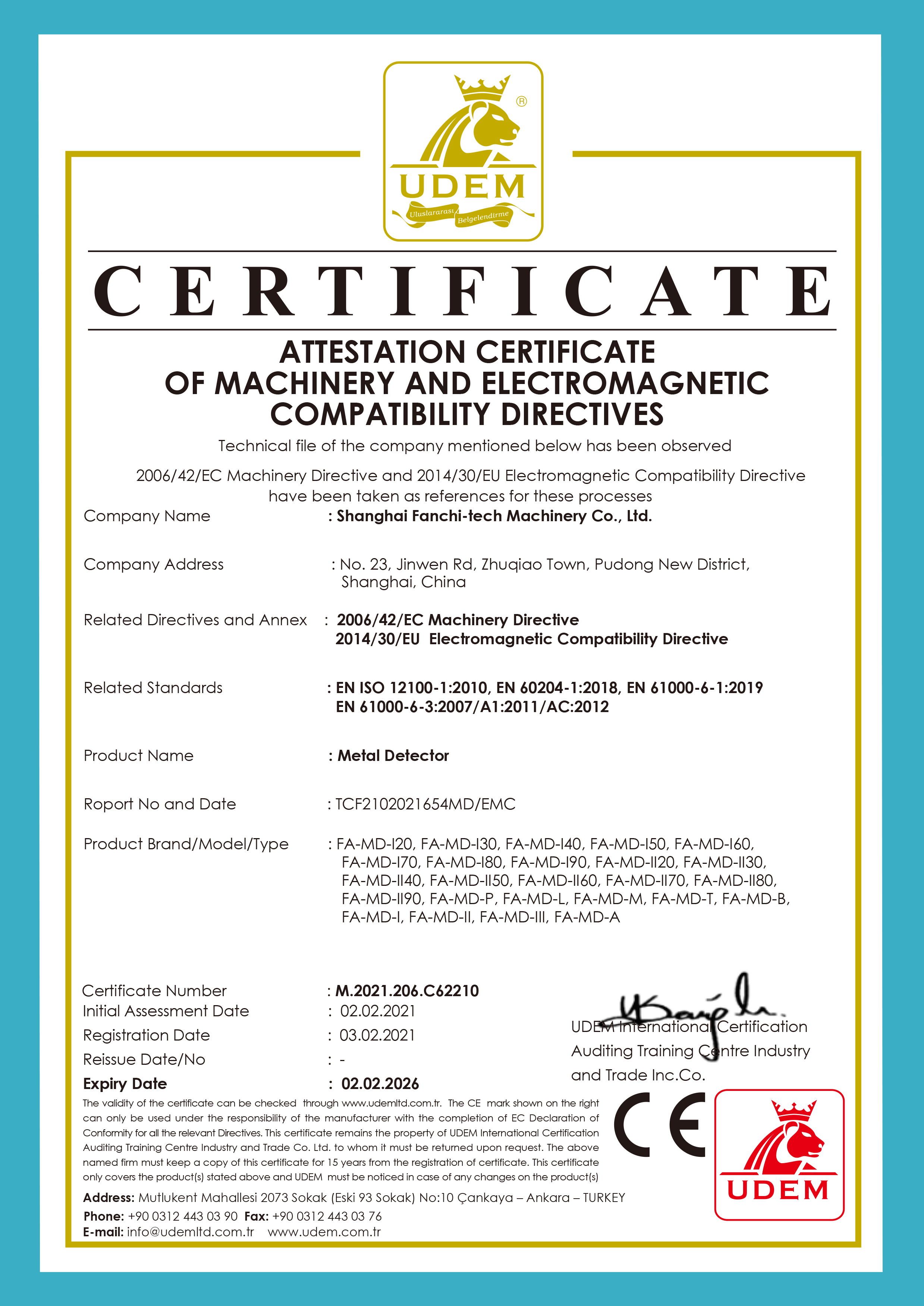

CE for Metal Detector
CE for Metal Detector

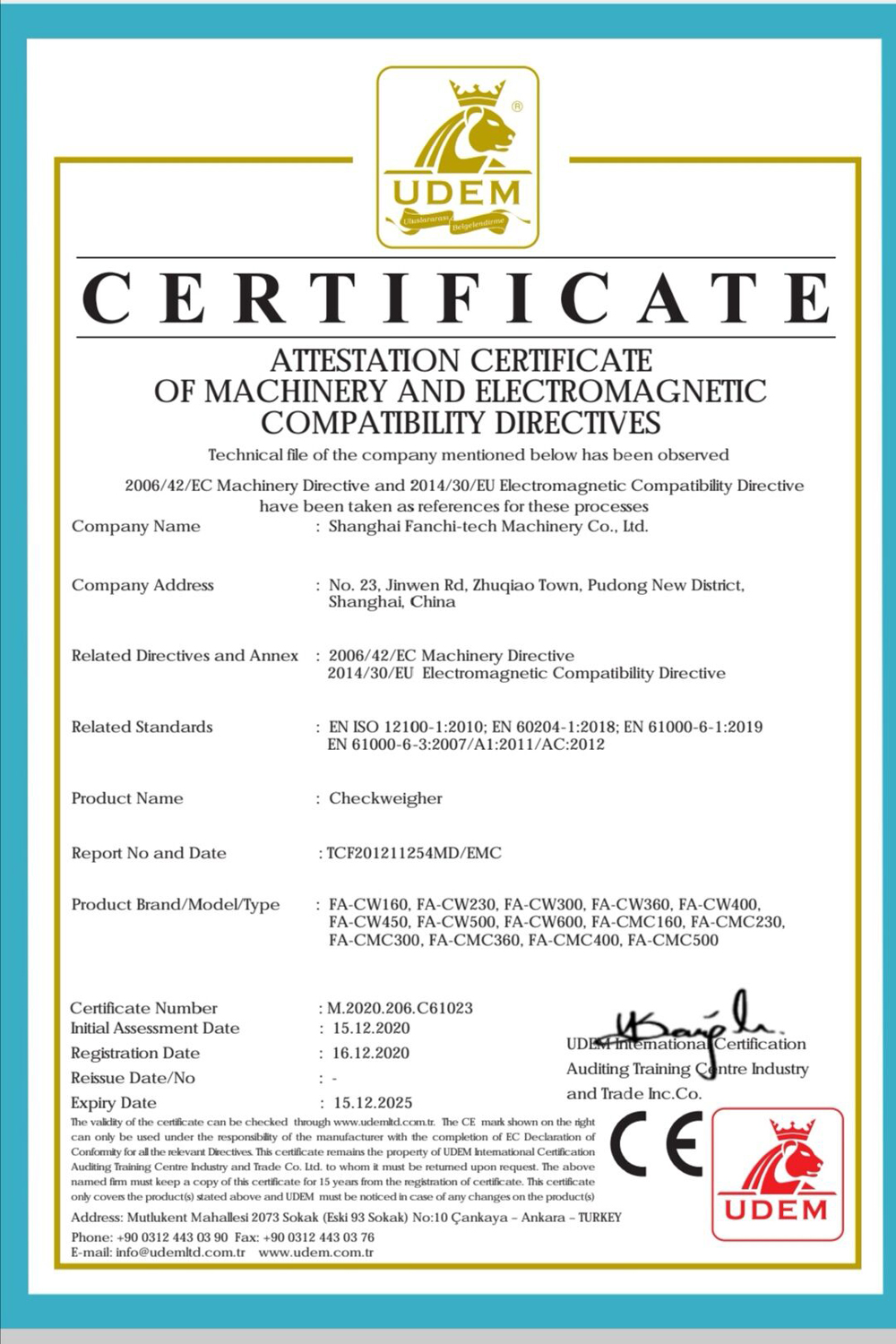

CE for Checkweigher
CE for Checkweigher
CE for X-ray Machine
CE for X-ray Machine

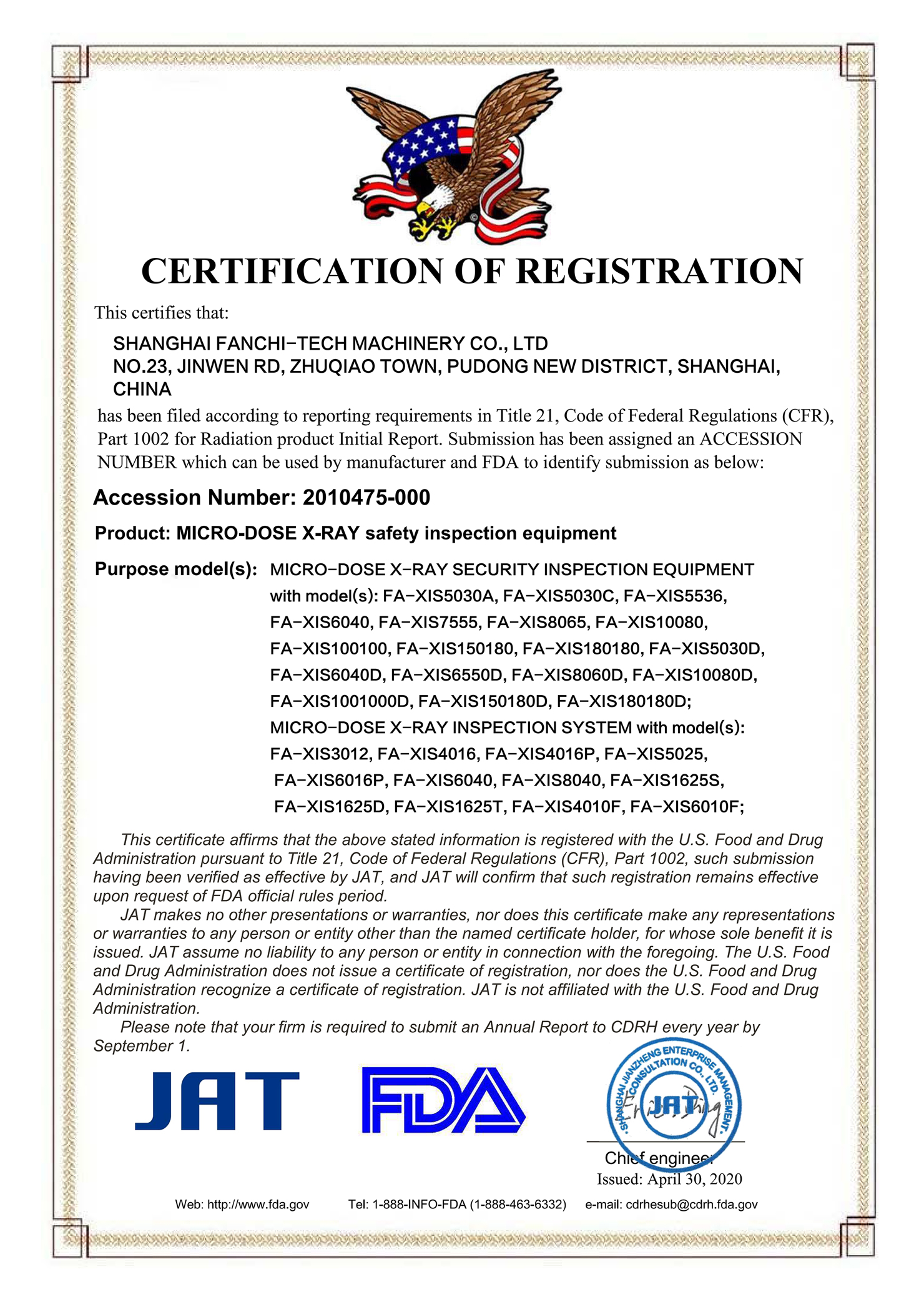

FDA Certificate
FDA Certificate
ISO Certificate
Group ISO Certificate
SASO Certificate
SASO Certificate
After-sale Services
Service Team
We recognise that providing great service, with great people on time, every time shows you the value of your investment in our company. Our cost effective designs and industrial ruggedness has ensured a longevity of high standard world-wide equipment.
For reliability and serviceability, we make our machines with standard and universal parts so in emergencies you are able to get your local fitter or local electrician to look after them. 12 months parts and labor is warranted on all equipment installed and supplied by us.
Technical Support
Frequently Asked Questions
What is a Checkweigher?
A checkweigher is an automatic machine that checks the weight of packaged goods while in motion and rejects any products that are over or under the set weight requirement.
Why is a Checkweigher Important?
Having a reliable checkweigher is a crucial component of your quality control program. It helps your business comply with government regulations, ensure product consistency, prevent under-filled packages from reaching market, save on lost revenue from overfilling, and optimize overall production.
What industries use checkweighers?
Checkweighers are prevalent in food, cosmetics, pharmaceuticals, technology, and consumer goods facilities. Any industry measuring product quality by weight or quantity (such as tablets or hardware components) benefits from this technology.
What causes product weight variations?
Variations can be caused by changes in product density, environmental shifts (like humidity and temperature changes), nozzle build-up, and operator setting errors. A checkweigher ensures these errors are caught before the goods leave your facility.
What is the warranty period for this equipment?
We offer a full 12-month warranty covering both parts and labor on all machinery and equipment installed and supplied by us.
Can these systems be combined with other inspection machines?
Yes, our dynamic checkweigher systems can be integrated in combination with metal detectors, x-ray inspection systems, or labeling machines, allowing you to maximize floor space efficiency.
